Deco X95
AX7800 Tri-Band Mesh WiFi 6 System
- True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds up to 7,800 Mbps for up to 200 devices†
- 8 Streams, Less Lag - 4×4/HE160 4804 Mbps + 2×2/HE160 2402 Mbps + 2×2 574 Mbps†
- Boosted Seamless Coverage — Mesh WiFi coverage up to 6,100 ft2 (2-pack), and 3,100 ft2 (1-pack).†
- Up to 2.5 Gbps Wired Connections – 1× 2.5 Gbps port + 2× Gigabit port offer high-speed data transmissions.§
- Seamless AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move room to room‡
- TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection*
- Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
Perfect in Every Aspect
A New Era of Whole HomeMesh WiFi
Deco X95
AX7800 Tri-Band Mesh WiFi 6 System
Tri-Band WiFi 6 AX7800
Coverage up to
3,100 ft² /290 m²
Connects Up to
200
Devices
HE160
Seamless
AI-Driven Mesh
Real-Time Cyber Security Protection
Smart Antennas
Boost Your WiFi
Advanced
2.5Gbps
Wired Performance
Note: It covers 6,100 ft² with 2-pack and 3,100 ft² with 1-pack.†
Tri-Band WiFi 6 Mesh
Ideal for Non-Stop Entertainments
Armed with WiFi 6 technology, Deco whole home mesh WiFi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.△
-
4× Larger Capacity
-
3× Faster Speed
-
1024-QAM
-
HE160 Doubling bandwidth
-
Backwards Compatible
Unlock Seamless Coverage By Smart Antennas
WiFi That is Adaptive to Your Unique Home
By using intelligent algorithms, Smart antennas auto-detect Deco units and adjust to the most optimal antenna pattern arrays. This way, with 2 smart antennas, Deco X95 creates the ideal network throughout your home.
-
Intensified Signals
-
Stronger Backhaul
-
Superior Coverage
-
Interference Resistance
-
4804 Mbps
5 GHz -1
-
2402 Mbps
5 GHz -2
-
574 Mbps
2.4 GHz
Powerful and Exquisite
Combining Tri-band WiFi with high-tech WiFi 6, Deco X95 provides 8 simultaneous data streams to open up more bandwidth and help your devices operate at full speed. With 2 smart antennas and 4 high-gain antennas, it not only delivers boosted WiFi signals to every corner of your home but also brings a sense of aesthetics.
-
Tri-Band
-
8 Streams
2.5 Gbps WAN/LAN Port
Ultra-Fast Multi-Gig Internet Connection with 2.5 Gbps Port
A 2.5 Gbps port and 2 Gigabit ports make full use of the Gigabit speeds from your local ISP. Breakthrough the 1G bottleneck and drive your devices to peak performance.§
Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.
-
① 2.5 Gbps Internet Access
-
② 2.5 Gbps Wired Connection

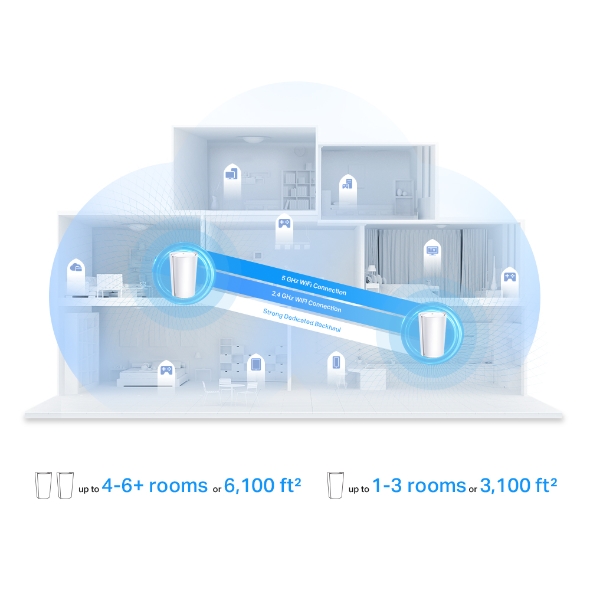

Coverage in All the Right Places
To blanket your entire home with WiFi, Deco X95 units work together as a powerful mesh network to boost broader coverage for connections in every corner. It provides an extra 5 GHz band working exclusively as the strong backhaul between deco units.
Want more coverage? Simply add another Deco. All TP-Link Deco can work together.
up to 4-6+ rooms or 6,100 ft²
up to 1-3 rooms or 3,100 ft²
Deco Fits Any Type of Your House
Brick and cement. Floors and ceilings. Walls and hallways. All of them make it tough for WiFi to travel across your home. Deco units work together to move WiFi around the obstacles in your home and deliver complete coverage.
-
Apartment
-
Multi-Story House
-
Ranch-Style House
Engineered for
More Devices
Deco products are aimed to dramatically improve capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.†
Gaming
8K Streaming
Phones and
Tablets
1080P Streamings
Smart Home
Devices
High-Speed
Downloading
4K Streaming
IP Camera
Streaming
Web Browsing
connections for up to
200
devices
Intelligent Networking for a Smarter Home
Deco uses its custom algorithms to automate the connections on your network, ensuring the strongest possible signals at all times.§
Learn more about AI-Driven Mesh >>
-
Sophisticated Algorithms
-
Self-Learning Capability
-
Customized Wi-Fi
Self-Learning
Advanced Algorithms
Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience.‡
Protect Your Network and Everything on It
TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
-
Network Protection
Detect cyber threats to keep your privacy and connected devices well protected.
· Real-Time IoT Protection
· Malicious Site Blocker
· Intrusion Prevention
· Home Network Scanner
-
Robust Parental Controls
Manage online time and block inappropriate content to keep families healthy online.
· User Profile by Age
· Content Filter
· Bedtime
· Time Rewards
-
Quality of Service (QoS)
Prioritize your bandwidth needs to get a faster networking experience.
· Device Priority
-
Comprehensive Reports
Gain full statistics and insights to help you know your home network better.
· Internet User Overview
· Online Time Analysis
· Browser History Analysis
· End Device Statistics
Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
-
1 CONNECT
to a modem and power on both. -
2 DOWNLOAD
and launch the Deco app. -
3 CONFIGURE
by following the in-app instructions.
Control Anyway You Want
-
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
-
Voice Control
Use an Amazon Alexa or Google Assistant-enabled device to control Deco X95 with just your voice.
-
All Decos Work Together
Deco X95 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
-
Basement
-
Yard
-
Garage
True Seamless Roaming
Deco units work together to form one unified network with a single network name. Your phone or tablet automatically connects to the fastest Deco as you move through your home. The switching takes less than 0.3 second and is smooth and unnoticeable, creating a truly seamless online experience.
-
Adaptive Path Selection
TP-Link Mesh Technology dynamically chooses the best route and band for your connections and applications, guaranteeing a fast Wi-Fi no matter where you are in the home.
-
Self-Healing
If one Deco has an issue, the system will automatically reroute data via the other Decos to make sure you stay online.
Wi-Fi + Powerline
Powerline connections utilize your home's electrical circuit to link Decos, bypassing even the thickest of walls and ceilings.
The dual-band Wi-Fi and powerline work together to transmit data between Deco units. The total network speed is greatly improved compared with using Wi-Fi only.
- Wi-Fi + Powerline:
- Hybird Wi-Fi System Boosted Speeds
- Traditional Mesh Wi-Fi:
- Standard Wi-Fi System
- Powerline
- Note：Wi-Fi + Powerline is only for Deco P9
IoT Mesh
Unlike traditional smart hubs, TP-Link Mesh Technology provides whole-home IoT coverage with Wi-Fi, Bluetooth and Zigbee integrated into a single system.Enjoy the magic of your smart home in every room with TP-Link Mesh Technology. Say goodbye to countless hubs.
- - - - Wi-Fi
- - - - Zigbee
- - - - Bluetooth
Wi-Fi 6 Mesh
Armed with Wi-Fi 6 technology,
Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
-
Broader coverage
-
More Connections
-
Faster Wi-Fi 6 Speed
AI-Driven Mesh
Armed with AI Mesh technology, Deco automatically learns and improves itself from experience.
This provides the ideal mesh Wi-Fi unique to your home and network environment.
Walk through your home and enjoy seamless streaming at the fastest possible speeds.
Why TP-Link Mesh Technology
an industry leading solution?
| Compete Comparison | |||
| Model Number | TP-Link Deco | Netgear Orbi | Google WiFi |
| Wireless Backhaul | Tri-Band(2.4G+5G_1+5G_2)¹ | Single-Band(5G_1 Only) | Dual-Band(2.4G+5G) |
| Mesh Protocol Supported | IEEE 802.11k/v/r | IEEE 802.11k/v | IEEE 802.11s |
| True Seamless Roaming | ✔ | × | × |
| APS(Adaptive Path Selection) | ✔ | × | ✔ |
| IoT Mesh | ✔² | × | × |
| Wi-Fi 6 Mesh | ✔5 | ✔ | × |
| AI-Driven Mesh | ✔6 | × | × |
| Powerline Backhaul | ✔³ | × | × |
| Wireless + Powerline Bandwidth | ✔⁴ | × | × |
| Band Steering | ✔ | ✔ | ✔ |
| AP Steering | ✔ | ✔ | ✔ |
| Self-Healing | ✔ | ✔ | ✔ |
| Notes: 1&2 For Deco M9 Plus Only;5 for Deco X20;Deco X90;6 for Deco X90 only. Spec sourced by Dec. 2019 |
|||
Deco Series
Deco
-
_EU_1.0_Overview_1_normal_20220411032339n.png)
Deco XE75
AXE5400 Tri-Band Mesh Wi-Fi 6E System
-
Deco X90
AX6600 Whole Home Mesh Wi-Fi System
-
Deco X80-5G
5G Whole Home Wi-Fi 6 Gateway (Availability based on regions)
-
_normal_20230202012857u.png)
Deco X73-DSL
AX5400 VDSL Whole Home Mesh Wi-Fi 6 System
-
_Overview_normal_20211225093612j.png)
Deco X50
AX3000 Whole Home Mesh WiFi 6 Unit
-
_Overview_normal_20211130021244m.png)
Deco X55
AX3000 Whole Home Mesh WiFi 6 System
-
Deco Voice X20
AX1800 Mesh Wi-Fi 6 System with Alexa Built-In
-
Deco X20
AX1800 Whole Home Mesh Wi-Fi 6 System
-
Deco M5
AC1300 Whole Home Mesh Wi-Fi System
-
Deco P9
AC1200 + AV1000 Whole Home Hybrid Mesh Wi-Fi System
Deco Network Management at Your Fingertips!
The Deco app provides the easiest way to set up, manage and monitor your Deco Whole Home Mesh Wi-Fi System through your iOS or Android devices.
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest and get your network up and running in minutes.
-
Connect Deco to your cable modem and turn on both devices
-
Download and launch the Deco app
-
Follow the in-app instructions to configure your Deco system.
Simple Management
Deco makes it easy to manage your Wi-Fi from anywhere, whether you’re on the couch, at work, or anywhere in between.
-
Simple Management Dashboard
View the working status of your network, check the connected devices and get all the features your router offers.
-
Multiple Decos, One App
The Deco app manages all your Deco networks and devices connected to your Deco Wi-Fi.
-
Check the Connected Devices
View a list of your connected devices with the ability to pause and resume internet access, test the internet speed and prioritize or block the devices.
-
Remote Management
Remotely take control of the network with a tap of your phone—no matter where you find yourself.
Powerful Parental Controls
Simple, intuitive parental controls make it easy to keep your children safe while they’re online.
-
Easily create a profile for each family member and set custom time limits and online time allowances. Assign devices to profiles so rules extend to individual devices as well as family members.
-
Keep your family safe online with one-touch security settings that block content based on age-appropriateness.
-
Set limits on how much time each person in your family can spend online.
-
With Insights, you can check out which sites your children visit and how much time they spend on each. It’s a great way to know your children are safe while they’re having fun online.
-
Take a break from Wi-Fi for dinner and family game nights. Just tap a button to suspend internet access for everyone in your home.
An Intuitive App Full of Features
Monthly Usage Summary
See a comprehensive list of your network details every month, including usage,
blocked content, security threats and more.
Home Automation
Make your life easy with powerful automation and voice control tools.
*Currently only for Deco M9 Plus
Flexible Shortcut
Flexibly control all devices from your phone or tablet with just one click.
*Currently only for Deco M9 Plus
Protect Your Network
Built-in Antivirus helps you defend against malicious website and guard your online payment.
*Currently only for Deco M9 Plus, Deco P7 and Deco M5
Prioritize Your Devices
Choose which devices always have the fastest connections
or set priority for a specific time duration.
Set Application Priorities
Allocate more bandwidth for the activities most important to you with simple controls.
*Currently only for Deco M9 Plus, Deco P7 and Deco M5
Share Wi-Fi with Friends
Set up separate Wi-Fi profiles for guests and share the password to
make it easier for them to hop online.
Check Your Speed
Run a speed test to ensure you’re getting the internet speeds you’re paying for.
View every device on your network and see how much bandwidth they’re using.
Our Support Always Has Your Back
Have questions about Deco? Help is always just a click away. Find the answers in Deco app and don’t hesitate to contact us with just a simple click.
Support| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHz (1)IEEE 802.11ax/ac/n/a 5 GHz (2)IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX78005 GHz (1): 4804 Mbps (802.11ax, HE160)5 GHz (2): 2402 Mbps (802.11ax, HE160)2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 4-6+ Bedroom Houses (2-pack)1-3 Bedroom Houses (1-pack) TP-Link Mesh TechnologyOptional Ethernet backhaul work together to link Deco units to provide seamless coverageAI-Driven MeshIntelligently learns the network environment to provide ideal WiFi unique to your home4× High-Gain Antennas (Internal)Multiple antennas form a signal-boosting array to cover more directions and large areas2× Smart Antennas (Internal)Smart antennas auto-detect other Deco units to establish a stronger backhaul between one another to boost WiFi coverageTri-BandProvides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverageBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Very High Tri-BandDistribute devices to different bands for optimal performance4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple WiFi 6 clients8 StreamsMore than enough bandwidth for connected devices |
| Working Modes | Router ModeAccess Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI FirewallAccess ControlHomeShield Security Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
| Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
| HARDWARE | |
|---|---|
| Ethernet Ports | 1× 2.5 Gbps port + 2× Gigabit ports *Per Deco Unit Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShieldLearn More> |
| Parental Controls | HomeShield Parental Controls Youtube RestrictionSafeSearchCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports |
| WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service | HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware UpgradeTP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP ProxyIGMP SnoopingBridge Tag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE:<20 dBm (2.4 GHz)<30 dBm (5 GHz)FCC:<30 dBm(2.4 GHz)<30 dBm(5 GHz) |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 5.1 × 4.8 × 8.3 in (130 × 123 × 210.5 mm) |
| Package Contents | Deco X95 (2-pack)2 Deco X95 units1 RJ45 Ethernet cable2 Power adaptersQuick Installation GuideDeco X95 (1-pack)1 Deco X95 unit1 RJ45 Ethernet cable1 Power adaptersQuick Installation Guide |
| OTHERS | |
|---|---|
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F)Storage Temperature: -40°C~60°C (-40 °F~140 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
§2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in IEEE 802.11ax specification.
Further software upgrades for feature availability may be required.
Google and Google Home are trademarks of Google LLC.
